230418
DIN 327
Frezy walcowo-czołowe trzyostrzowe krótkie do kanałków wykonane ze stali szybkotnącej HSSCo8.
| Zastosowanie | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|

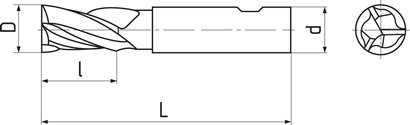

| Kod | D | l | L | d |
|---|---|---|---|---|
| 221418.40032 | 40 | 63 | 196* | 32* |
| 230418.020 | 2 | 4 | 48 | 6 |
| 230418.030 | 3 | 5 | 49 | 6 |
| 230418.035 | 3,5 | 6 | 50 | 6 |
| 230418.040 | 4 | 7 | 51 | 6 |
| 230418.045 | 4,5 | 7 | 51 | 6 |
| 230418.050 | 5 | 8 | 52 | 6 |
| 230418.055 | 5,5 | 8 | 52 | 6 |
| 230418.060 | 6 | 8 | 52 | 6 |
| 230418.065 | 6,5 | 10 | 60 | 10 |
| 230418.070 | 7 | 10 | 60 | 10 |
| 230418.075 | 7,5 | 10 | 60 | 10 |
| 230418.080 | 8 | 11 | 61 | 10 |
| 230418.090 | 9 | 11 | 91 | 10 |
| 230418.095 | 9,5 | 11 | 61 | 10 |
| 230418.100 | 10 | 13 | 63 | 10 |
| 230418.110 | 11 | 13 | 70 | 12 |
| 230418.120 | 12 | 16 | 73 | 12 |
| 230418.130 | 13 | 16 | 73 | 12 |
| 230418.140 | 14 | 16 | 73 | 12 |
| 230418.150 | 15 | 16 | 73 | 12 |
| 230418.160 | 16 | 19 | 79 | 16 |
| 230418.180 | 18 | 19 | 79 | 16 |
| 230418.200 | 20 | 22 | 88 | 20 |
| 230418.220 | 22 | 22 | 88 | 20 |
| 230418.250 | 25 | 26 | 102 | 25 |
| 230418.280 | 28 | 26 | 102 | 25 |
| 230418.300 | 30 | 26 | 102 | 25 |
| 230418.320 | 32 | 32 | 112 | 32 |
